Work Samples

Our experience includes designs for consumer markets as well as many industrial and government/military applications. In most cases we can quickly deliver assembled prototypes/small production builds in-house as well.

We have taken design from paper napkin concepts, to initial engineering drawings, to engineering prototypes and user testing, to mass manufacture. We designed, developed and delivered RF equipment, networking equipment, data acquisition devices, embedded controllers, and electromechanical devices.

We have fully equipped electronic laboratories, development hardware and software for common microcontroller and programmable logic chipsets and fully licensed EDA, CAD and software development tools.

Besides doing our own fabrication and assembly, we also produce electronic work package for use with automated assembly and test processes need for full-scale mass production. We will work with any contract manufacturer the client selects or can offer suggestions based on the scope of the project.

We maintain a full CNC shop for rapid turnaround of the mechanical aspects of those projects. We can perform the electrical and mechanical design, write embedded system software, then actually deliver complete working proto/EAP products in the target form factor. We work with mold houses to generate molds quickly if needed.

We work well under pressure, have completed jobs over holidays just to get our customers' products out the door. For the last 9 years, we've completed an average of 8 complete product designs and 130 subsystem designs per year - all to the satisfaction of our customers.

Products,  Embedded and System Software, Hardware and PCB Layout, Mechanical Design, CNC Machining and Prototypes

Products

One of the first designs our personnel did was for the original IBM XT, running DOS 1.1; it was for the video CGA adapter. At the time, there were no clones, no reference designs on developer.intel.com (the Internet wasn't really even accessible to common-folk), and the main method to layout multi-layer PC boards was to use Bishop Graphics 4:1 tape up (red and blue decals on velum). The video graphics device allowed the use of these early PC’s with the various projection and video production systems that were available in 1984.

Our personnel have pioneered development in many areas, including CMOS imagers and ISM-based RF devices. They hold patents (Inventor, USPAT 6,208,266) for remote data acquisition and processing system and for Wireless Intrusion Detection Devices.

We have since then designed, developed and manufactured digital, RF, analog and programmable logic based products. We have written custom embedded, networking, device driver and application software for these products.

Besides defense related products, we've also developed products for industrial automation, telecommunications, core network, and network-based security (IDS, firewall, crypto) appliance markets. Many of these products have been developed in a "concept to production" capacities.

Here are a few samples

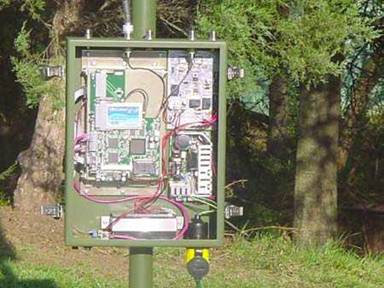

VHF/UHF, Low power radio with inbuilt mesh networking

This radio beats all currently deployed radios in the defense security market in terms of in built mesh networking protocol, data rates delivered and power consumption. It is dual band (138-174 MHz, 402-470 MHz), 12.5 and 6.25 KHz narrow band,with in built mesh networking protocol built in, and has a current draw of less than 50 mA at 3V. Its high sensitivity of upto -120 dbm sensitivity give it a large range. Its raw bandwidth is upto 9.6 kbps. We designed the RF and baseband hardware and wrote the embedded firmware. We manufactured, tested and delivered the initial production run.

Automated Test Equipment for Vehicle Maintenance

Occasionally new clients approach us that are already well behind schedule and way over budget. Add to that the bureaucracy involved after being selected as a developer; getting the proper contract vehicles in place with primes, various departments, etc., and it can severely impact the time left to actually develop the product. This was the case with a recent project; it comprised a small multichannel wireless ADC device and wireless handheld device in a submersible container - you may have seen similar enclosures on web sites for "Area 51 sensors" recently (you can google that exact phrase - a picture is usually in the first link that comes up ).

Even with time and resource constraints, Sanjay and Wayne were able to specify, model, and create initial prototypes in less than three weeks. As we got further into it, we along with the team from the military and the contractor, learned that the spec which was originally written in 1988 was not clear on a lot of the technical aspects of the target systems. This led to further refinements, and in the case of the wireless ADC device, a significant change to the circuit topology.

Despite difficulties, we were able to get 10 new sets of the modified design completed and ready for FAT (First Article Testing) as per the military requirements in less than a month. Th problems included a customer mandated change to the mechanical system for the handheld, as well as a vendor suddenly EOL'ing (end-of-life'ing) a "new" OLED display without warning (Digikey still showed the product as "new" when the product manager at the vendor mentioned them killing the product line). This also required setting up and machining various mechanical aspects of including enclosure modifications, fixtures for assembly and actual part fabrication to satisfy the "adjusted" requirements. Not to mention having to hand place over 4,000 SMT parts (0603 passives), sometimes in less than three days.

The units passed FAT, withstanding MIL STD 883 tests that even the Government Furnished simulators used to test our devices would shutdown or reset during the tests. For example, when testing our DCA device, we injected ~8KV to our PCB ground; our device didn't even hiccup but the simulator crashed with the attached Windows application laptop rebooting back to a BIOS screen as well.

After a few more tests, we assembled another set of fifteen units that eventually passed the second tests known as FQT.

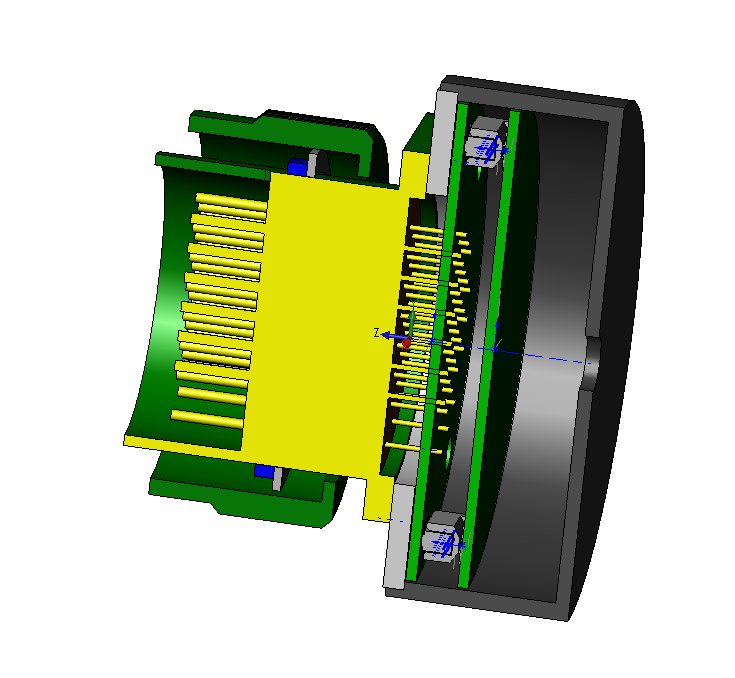

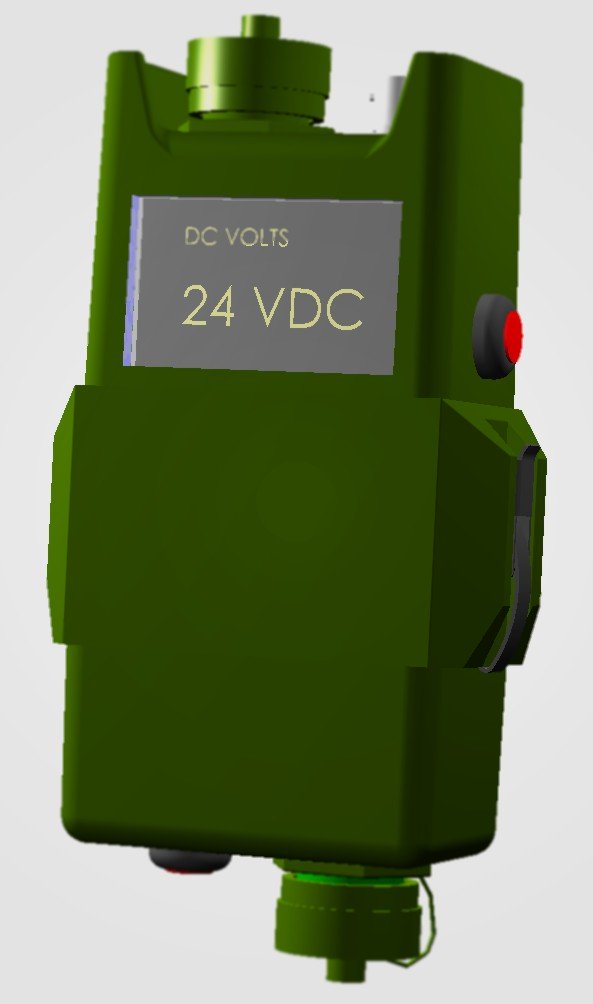

Solid Models of both the DCA and Handheld unit

Pictures of Sanjay with the initial prototype

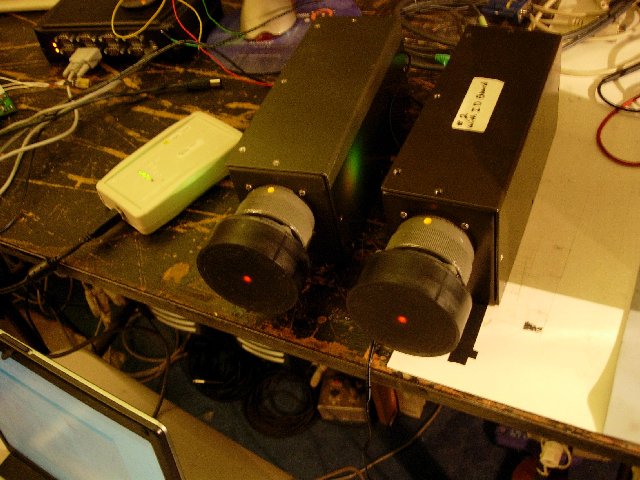

A picture of the completed FQT unit

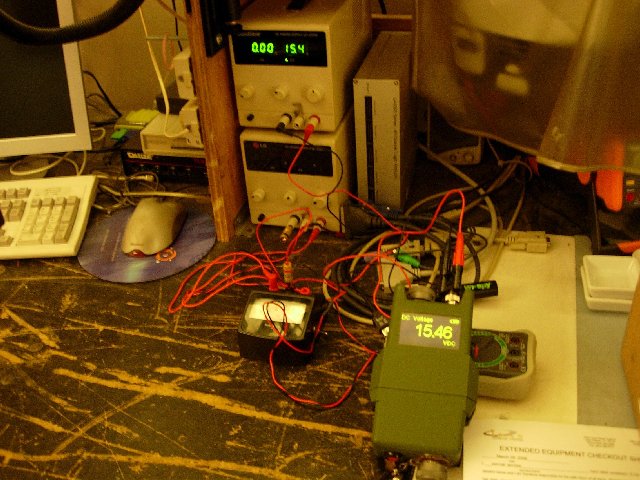

Wireless DCA device under test on GFE military simulators

Remotely Operated Weapon System (ROWS)

Our personnel designed, developed, oversaw the fabrication, tested and delivered the control and communication system for one of the first prototypes of a wide area remotely operated weapon system. Complete details of the currently fielded units are available on Wikipedia.

Complete Dynamic Simulator for NASA Global Geospace Science Program Satellites

In order to test flight software for the GGS series of satellites, our personnel designed a closed loop simulator that simulated the complete dynamics of the satellite from separation, to rocket engine firing to acquisition of attitude data from sensors Our personnel developed sensor and actuator models, the simulation software and interface hardware. The simulation ran in real time and interfaced to a engineering version of the controller board running flight software through custom boards. The use of simulator led to the identification of several subtle and critical errors in the flight software. The satellites were successfully launched and operated and their data made significant scientifc discoveries possible

[Back to top]

Embedded and System Software

We have written the embedded and system software for more than 60 products. These have ranged from software radios, handheld units, data acquisition system, telemetry cards to complete integrated systems with multiple servers collecting data from hundreds of remote telemetry units. Here are a few samples

  • Embedded software to control a software configured radio. The embedded software controls modulation schemes, power output, mesh networking and system interface.
  • XML based sensor controllers
  • Telemetry parsing and display units for data from NASA satellites
  • Custom Linux builds for handheld deivces
  • Windows CE drivers
  • Windows device drivers for PCMCIA based data acquisition cards
  • Custom Linux kernel drivers for ISA and PCI devices
  • Embedded Web servers
  • Solaris drivers for for VME based test systems
  • Embedded software automatic meter reading devices
  • Custom software for NASA space shuttle experiment that involved shooting out a small can shaped object about fifty yards from the back of the space shuttle and tracking it using lasers.
  • Our personnel wrote the Generic Radio IP (GENRIP) driver for Linux allowing small, low-powered ISM band radios to be used as Linux network interfaces. Released to open-source community.
  • Interpreters for VxWorks, BASIC.
  • Test automation software
  • Software for Atmel AVR, AVR32, x86, ARM, Freescale, ST Micro, 8051, TI DSP , Rabbit processors among others

[Back to top]

Hardware and PCB design and layout

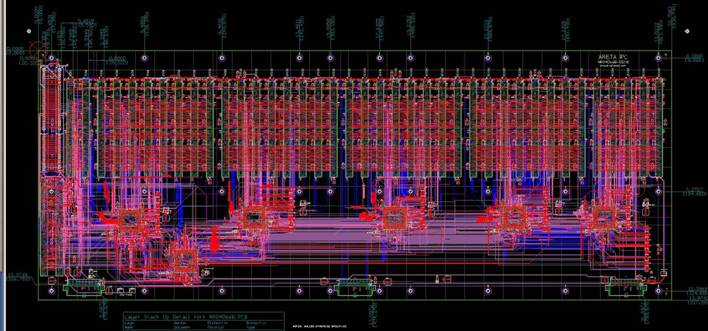

40 Slot PCI 64/66/ backplance

Above is a 40 slot PCI 64/66 backplane. We designed this for a company that was using various I/O cards for multimedia applications.

Here's PDF of the board layout where you can zoom in and out, it's about 15Mbytes:

40 slot PCB 64 backplane

This is the EDWG used for registration of the PCI connectors and mounting holes

EDWG of 40 slot PCI backplane.

This is the EDWG used for registration of the PCI connectors and mounting holes EDWG of 40 slot PCI backplane

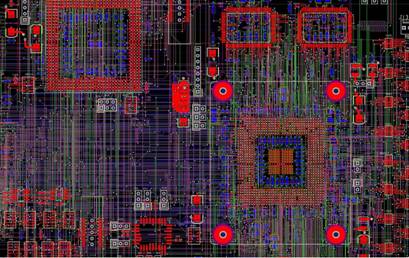

OC 48 Packet Processing PCB

Above is a partial view of an OC48 packet processing PCB. This design was completed in less than 3 weeks.

It contained a 901 pin socketed BGA (custom development socket) 18 split planes for various power rails, 5 data busses running at 200 Mhz clock speeds (one was 128 bit wide) and various other I/O used for development of firmware /software. It fed a LVPECL transponder via an Intel 6048 framer.

This was a 19 page schematic and as mentioned, 10 layers with significant LVPECL nets with numerous layout constraints for impedance of dozens of differential pairs, 5 clock domains all running at 150MHz or more, and 18 split planes, each filtered and regulated. We turned that job in less than 10 days. We have lots of these samples, if you’d like more.

One of the techniques we use that made it possible to deliver in such as short period of time is the method of using staging tables to generate schematic symbols DIRECTLY from the manufacturers PDF datasheets. No chance of mis-keying pin names and numbers. If the datasheet is right, so is the schematic.

This is especially handy when doing parts like the 600 pin Intel IXF6048 framer, shown on the PDF example.

[Back to top]


Mechanical Design

We have over 20 years of experience in 3D modeling and all forms of CAD design. We have and own over 20 licensed programs such as Solidworks, AutoCAD Mechanical, and various software tools used with our mid-sized 4-axis CNC machine.

Our acumen with both the practical considerations of the product as a whole leads to the success of our projects. A comment we always get (and can provide reference for) is:

"Wow, worked first time - everything fits..."

A lot of the mechanical vendors we've used in the past, comment on how error-free the entire packaging is..We typically deliver EDWG’s to clients for verification of design intent and to insure that the overall product meets their criteria. An EDWG is a zip file that contains an executable viewer with the 3D model data that does NOT require any installation or other software to be present on the clients machine. You simple extract the EDWG file, execute the extracted file and enjoy. You can then rotate the model, zoom in/out, or hide/make transparent any part of the model.

Injection Mold Design

A prime example of an innovative injection mold design; where again, everything fit on the first run is located at: Link for ev0034.zip

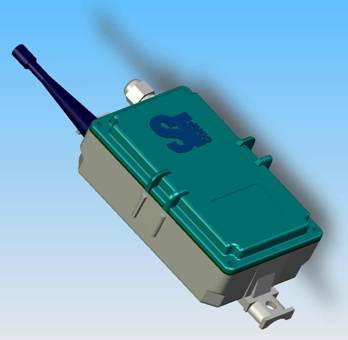

This device was made to enclose a wireless device. It had to withstand full submersion, and maintain operation for over 10 years. It also had to cost less than $30.00 USD so as to provide a positive ROI to the utility over 5 years.

Having it all fit and work the first time as well as meet all the design requirements was critical to the accelerated delivery schedule proposed by the customers. I was able to accomplish this with time to spare.

Hardened RF Enclosure

Again, this was a "rush job" for a local D.C.-based firm that needed a hardened enclosure for use on military HumVee's. It required a water-tight enclosure for use with wireless equipment and had to have provisions for shore power as well as 24VDC with internal gel-cel battery backup. We also designed the majority of the internal electronics. The entire design (mechanical and electrical) as well as supplying OER, INC in Reston, VA. The entire design (mechanical and electrical) as well as supplying OER, INC in Reston, VA with shop/fab files, and supplying gerber files for PC Board fab, took less than 10 days. We built the first prototypes within two days of receiving the fabricated parts/PCB's.

A photo of the completed design is shown here

Another EDWG sample can be found at:

Link for FA2-ASSY.zip

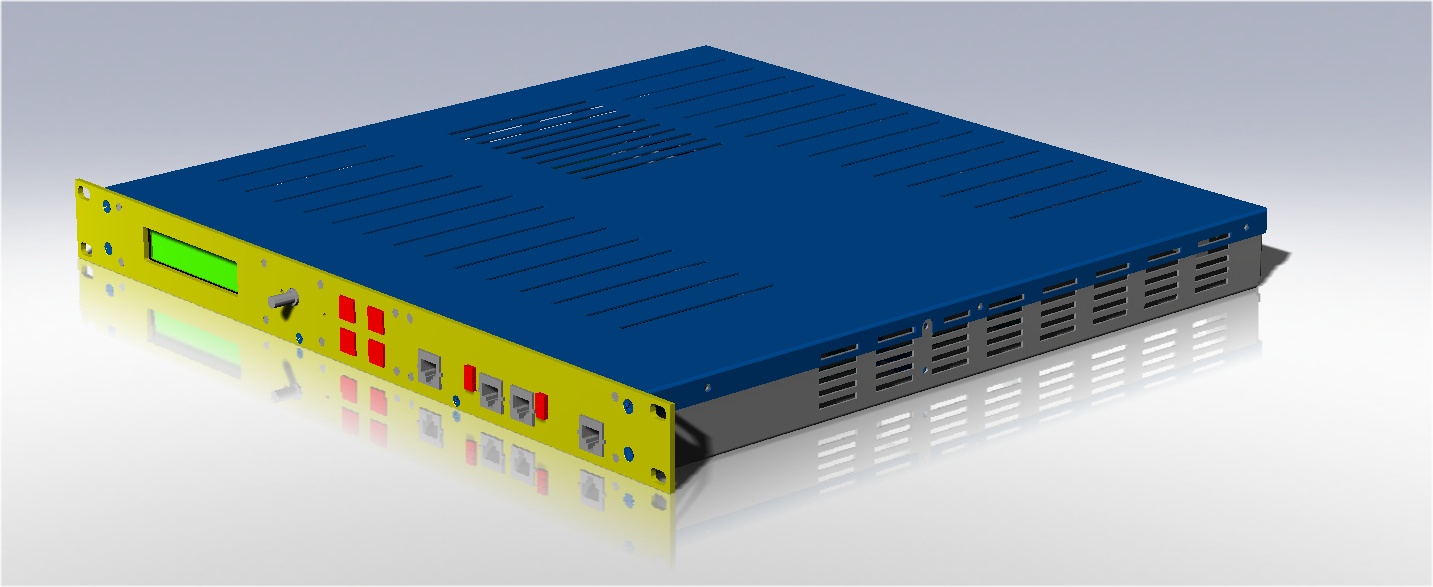

Network Management Rack Unit

Here's another example of a rush job. A single rack unit chassis for use in network management. We designed the hardware as well as all mechanical parts in less that 3 weeks. We designed 4 custom PCB assemblies that allowed the device to failover to a pass-thru state if the custom supervisory processor detected any failure within the main subsystem.

A link to the edwg can be found here - Link to 1U chassis design

Chasis

An EDWG sample of the chassis design below can be found at: Link for owt0320-dual.zip

Another Injection Molded Part

[Back to top]


CNC Machining and Prototypes

We built our own labs, soup to nuts, everything we would need to deliver working prototypes and limited run units from concepts . Not only can we do the package (or a lot of times use modified COTS enclosures) and electronic design, but we can get the PCB fabbed inexpensively, hand build the first few (even 700 SMT parts is no problem), write and load the embedded software, test it and deliver an actual working product. Our hands-on approach leads to prototypes and limited run units that can actually be mass produced and marketed

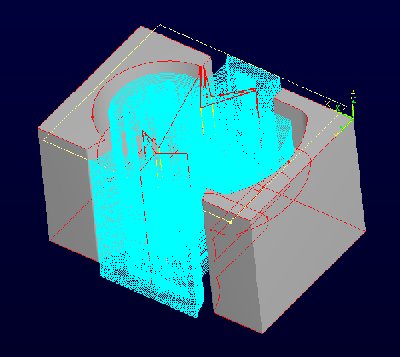

Typical tool path generation from solid model

As to our  CNC shop, the following are some links to video samples of my machine:

Milling a front panel faceplate for a communication device:

Video - Front Plate

Milling a small Lansing enclosure front plate:

Video - Specially jigged front plate

Milling a 2x3 6061 AL block:

Video - 6061-1

Video - 6061-2

Milling a COT enclosure for use in an avionics prototype (electronics designed in-house):

Video - DSCN0860.avi

Cutting a pocket for usein a thermal solution for Hi Powered RF design (electronics designed in-house and by others):

Video - pocket.avi

Milling a 2" block for use in a mechanical subsystem:

Video - 2inblks.avi
